Descriptions

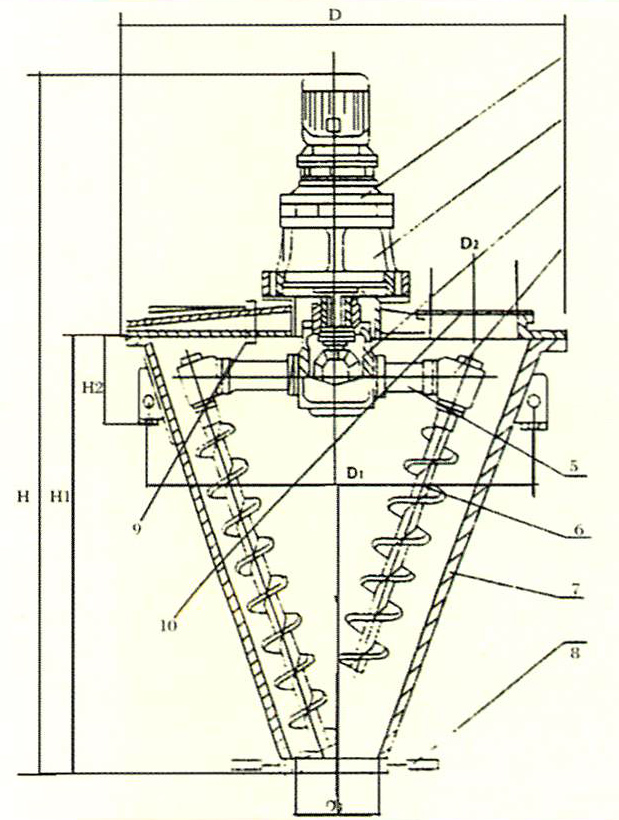

※ The material is made to conduct a compound motion In the cone because of the rotation and revlution of the screws．The effected motions include:
(1)the revolution of the screw along the wall making the material conduct a circumfretial motion:
(2)the rotation of the screw making the material rise along the screw from the coneboron；
(3)the compound motion of the rotation and revolution of the screws making partial material be absorbed into the screw cylindroid meanwhile，under the action of centrifugal force，the partial material in the screw cylindroid discharges radialy;
(4)the rised material drops under its sole weight，the kinds of motions effect convection，shearing，siffusion in the cone，thus quich and even mixing can be achieved．
Feature
※ This model of machine can be equipped with single screw, double screws, tri-screws.
※ It can be equipped with fiying-entter additionally, so as to meet the requivemeits for special technology.
※ The discharge valve adopts two ways, one is manual or the other is pheumatical.
※ The power of motor can be enlarged for special material (Strengthening Type).
Application
※ It is suitable for chemical industry, pharmaceutical industry, pesticide, dyestuff, petroleum industry, metallurgical industry, construction material and etc. such as in the mixing, reaction, drying, cooling of powder(solid-solid), powder and liquid (solid-liquid), liquid an liquid(liquid-liquid).
Technical parameters
| mode t and spects | DSH-0.05 | DSH-0.1 | DSH-0.3 | DSH-0.5 | DSH-1 | DSH-2 | DSH-3 | DSH-4 |
| mixed amount/batch kg | 20-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | l600-2400 |
| equipped power kw | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| dead weight kg | 200 | 280 | 550 | 600 | 1200 | 1500 | 2000 | 3000 |
| model and spects | DSH-6 | DSH-8 | DSH-10 | DSH-12 | DSH-15 | DSH-20 | DSH-25 | DSH-30 |
| mixed amount/batch kg | 2400-3600 | 3200-4800 | 4000-7200 | 4800-7200 | 6000-9000 | 8000-12000 | 10000-15000 | 1200-1800 |
| equipped power kw | 15 | 18.5 | 18.5 | 22 | 30 | 37 | 37 | 45 |
| dead weight kg | 4000 | 5000 | 5500 | 6000 | 6600 | 7000 | 7800 | 8500 |
